DESCRIPTION
LEG 3 25 30.5 10Load Rating 16,000 lbs | 71.2 kN
Power-Packer offers a complete line of standard hydraulic stabilization legs ranging in bore size from 3 to 6 to meet any on- or off-highway demand.
Product Code: 2012-25
Power Packer Heavy-Duty Hydraulic Stabilization Legs Brochure
Power Packer Full Catalog

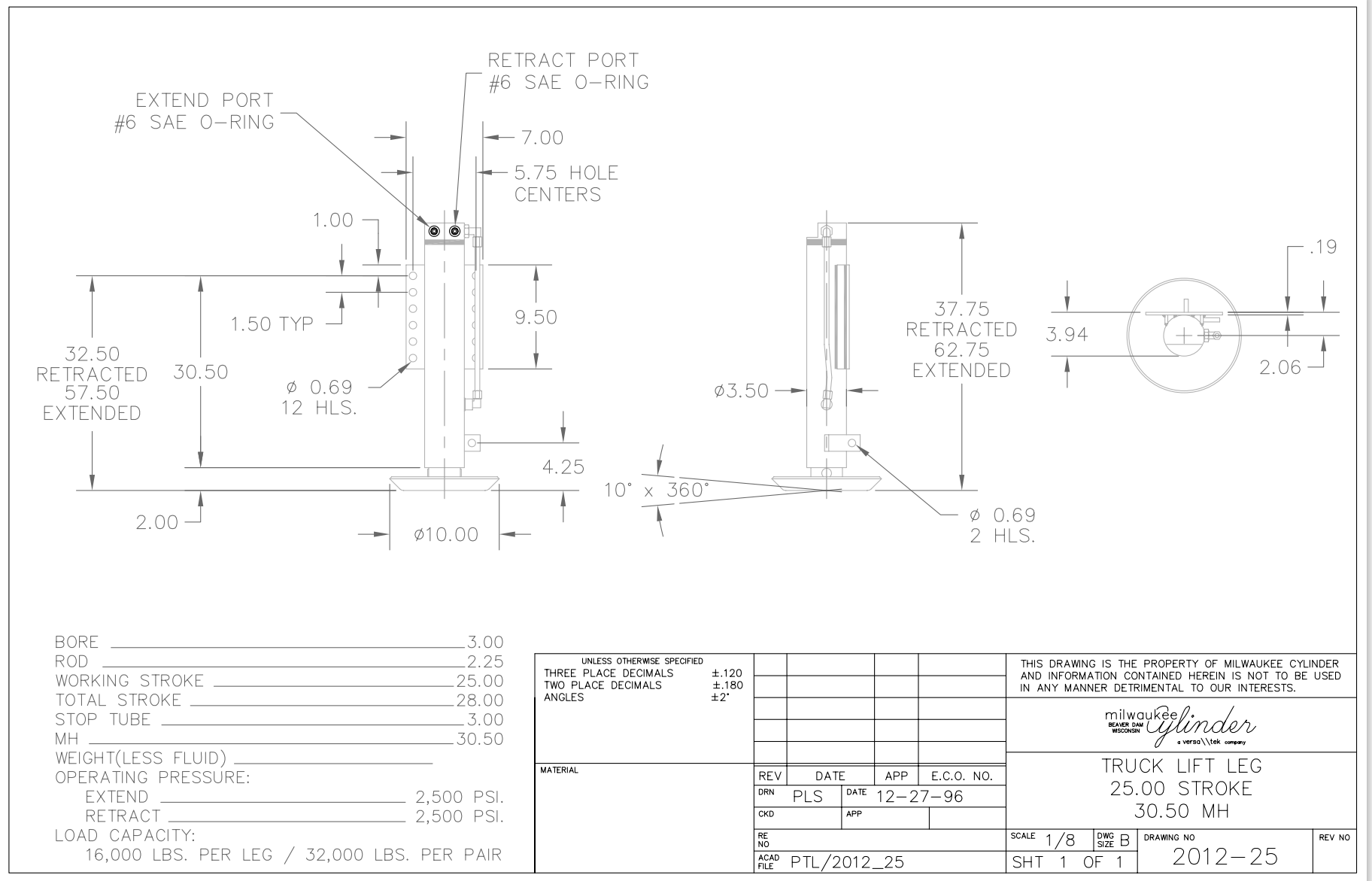

2012-25 Part DrawingSPECS
| Bore (in|mm) | 3.0 | 76 |
| Stroke (in|mm) | 25.0 | 635 |
| Mounting Height (in|mm) | 33.5 | 851 |
| Shoe (in|mm) | 10.0 | 254 |
| Shoe Type | Swivel |
| Swivel | 0 |
