Description
DESCRIPTION
LEG 3 18 21 10Load Rating 16,000 lbs | 71.2 kN
Power-Packer offers a complete line of standard hydraulic stabilization legs ranging in bore size from 3 to 6 to meet any on- or off-highway demand.
Product Code: 2010-18
Power Packer Heavy-Duty Hydraulic Stabilization Legs Brochure
Power Packer Full Catalog

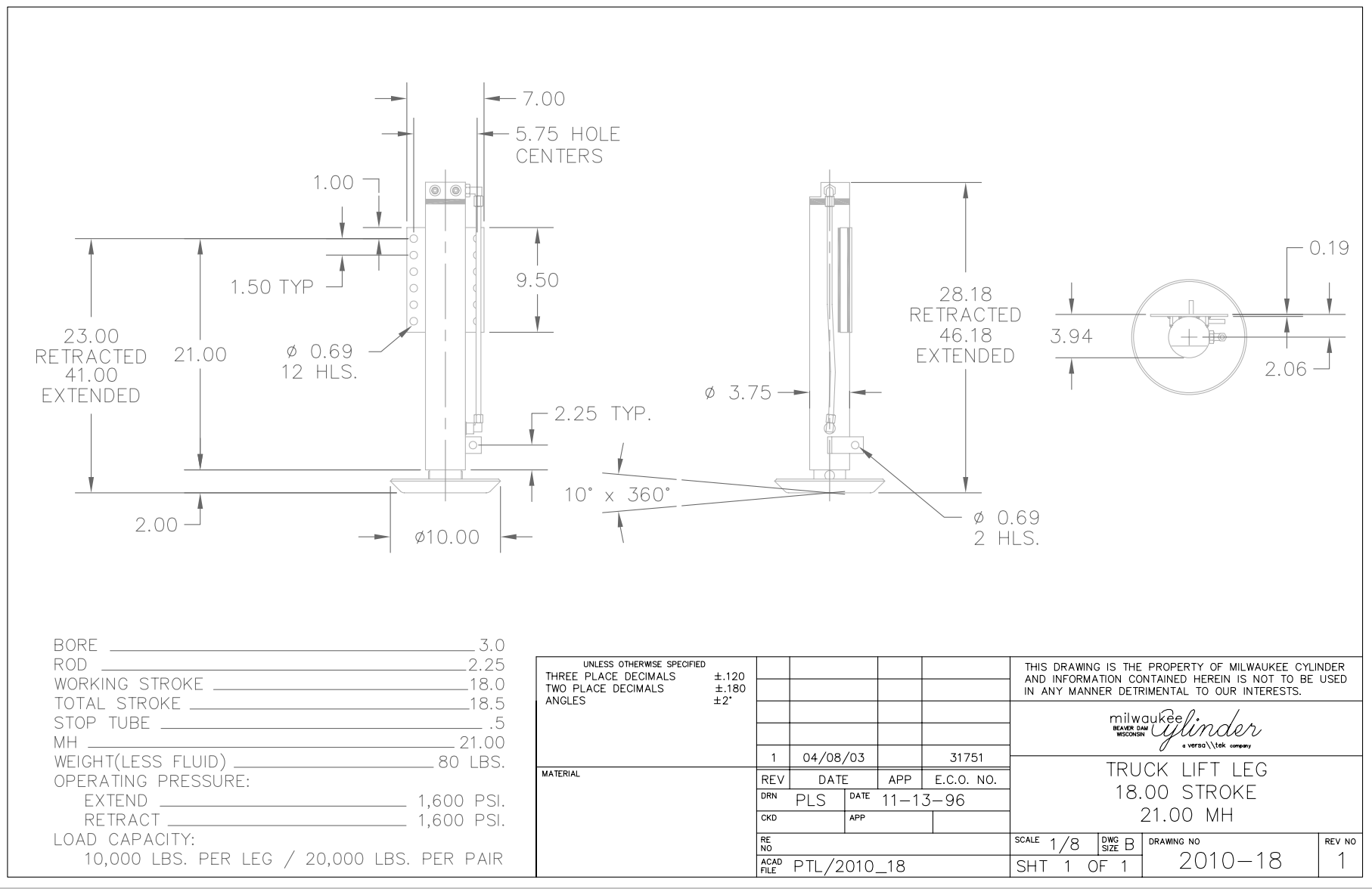

2010-18 Part Drawing SPECS
| Bore (in|mm) | 3.0 | 76 |
| Stroke (in|mm) | 18.0 | 457 |
| Mounting Height (in|mm) | 24.0 | 610 |
| Shoe (in|mm) | 10.0 | 254 |
| Shoe Type | Swivel |
| Swivel | 0 |
