LATCH ASM HYD W/ VISUAL INDICATORPower-Packer's LH50000114 Hydraulic Latch with a Visual Indicator is one of the best for convenience and safety. Power-Packer's latch remains engaged by default, offering continuous security. Enhanced with a visual indicator, it provides clear confirmation of its status. Whether securing covers or cabs during travel, its compact design and effortless installation make it the preferred choice for professionals. Operating pressure maximum: 5000 psi, Piston diameter: 1.375", Operating pressure to open latch: 200-350 psi, Maximum vertical pull load: 10,000 lbs., NO switch indicates when latch is unlatched (Open), NC switch indicates when latch is latched (Closed) (Catch Bracket NOT Included)
Product Code: LH50000114
Cab Tilt System Components Spec Sheet
Power Packer Full Catalog
Hydraulic Latches

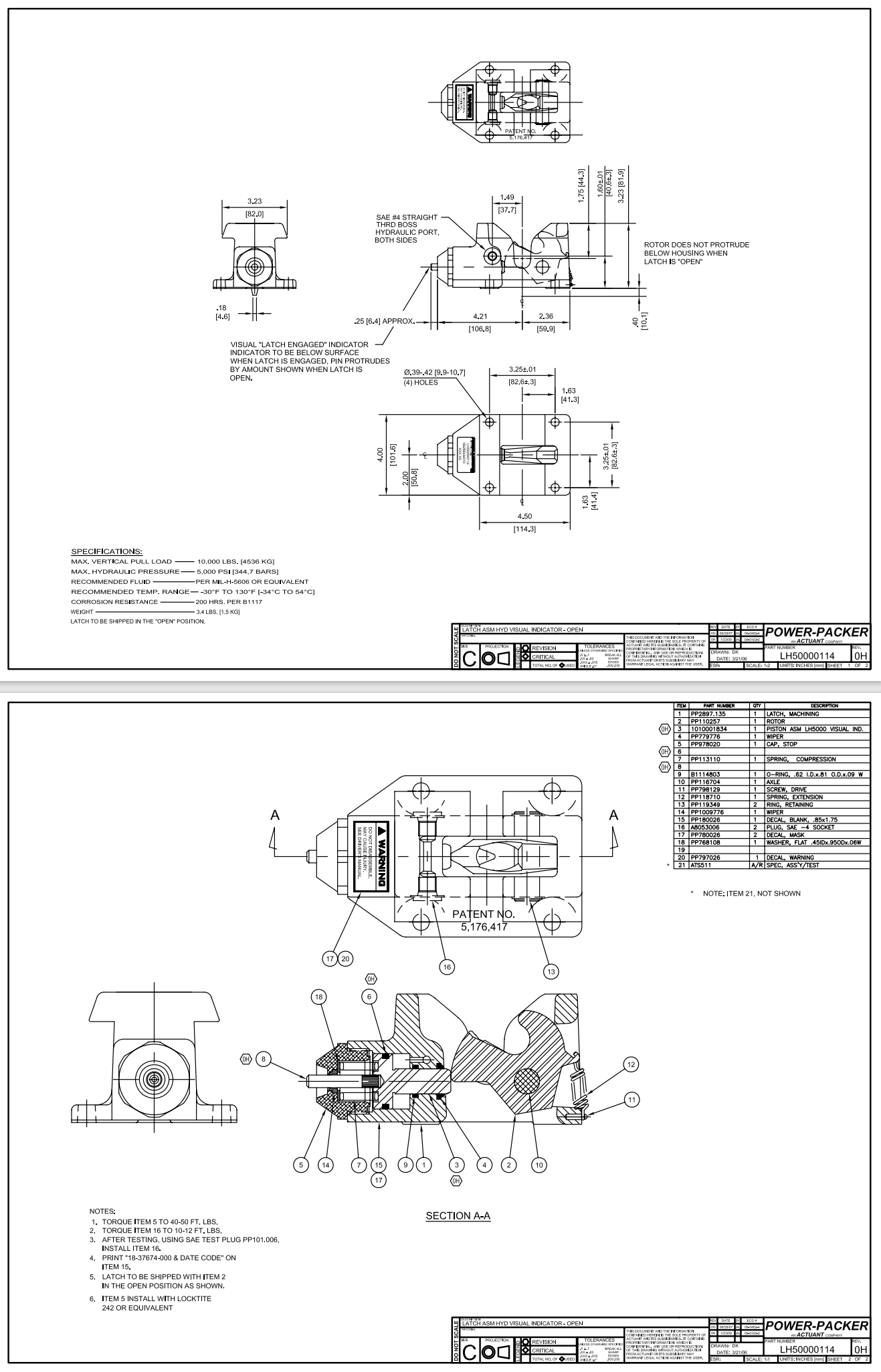

LH50000114 Part DrawingSPECS
| Description | LATCH NORMALLY ON |
| Height | 3.2in | 81.3mm |
| Length | 6.5in | 65.1mm |
| Top Length | 4.5in | 114.3mm |
| Mounting Holes | 4 |
| Base Dimensions | 4.5x4in | 114.3x101.6mm |
| Weight | 3.4lbs | 1542.21g |
