Description
DESCRIPTION
LEG 3.5 20.5 26.06 12Load Rating 24,000 lbs | 106.8 kN
Power-Packer offers a complete line of standard hydraulic stabilization legs ranging in bore size from 3 to 6 to meet any on- or off-highway demand.
Product Code: 300074
Power Packer Heavy-Duty Hydraulic Stabilization Legs Brochure
Power Packer Full Catalog

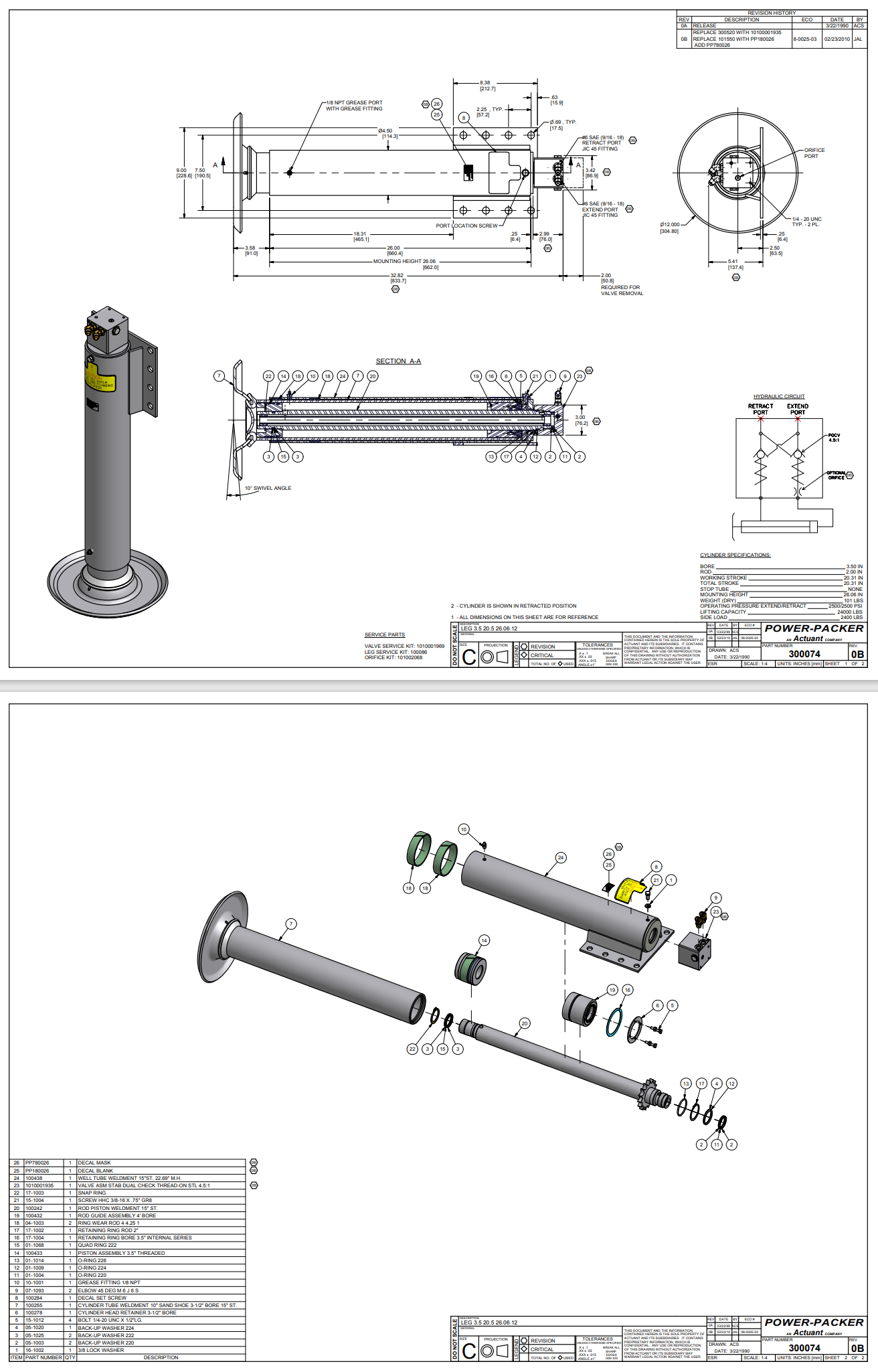

300074 Part Drawing SPECS
| Bore (in|mm) | 3.5 | 89 |
| Stroke (in|mm) | 20.5 | 521 |
| Mounting Height (in|mm) | 30.3 | 769 |
| Shoe (in|mm) | 12.0 | 305 |
| Shoe Type | Swivel |
| Swivel | 0 |
