LEG 4.0 24.5 34.98 16 AIP OPLoad Rating: 37,000 lbs | 164.6 kN - High Ratio Single P.O. Check for Air Operation (Max. Retract psi Limit: 500 psi)
Power-Packer offers a complete line of standard hydraulic stabilization legs ranging in bore size from 3� to 6� to meet any on- or off-highway demand.
Product Code: 100911
Power Packer Standard stabilization Legs Specs
Power Packer Full Catalog

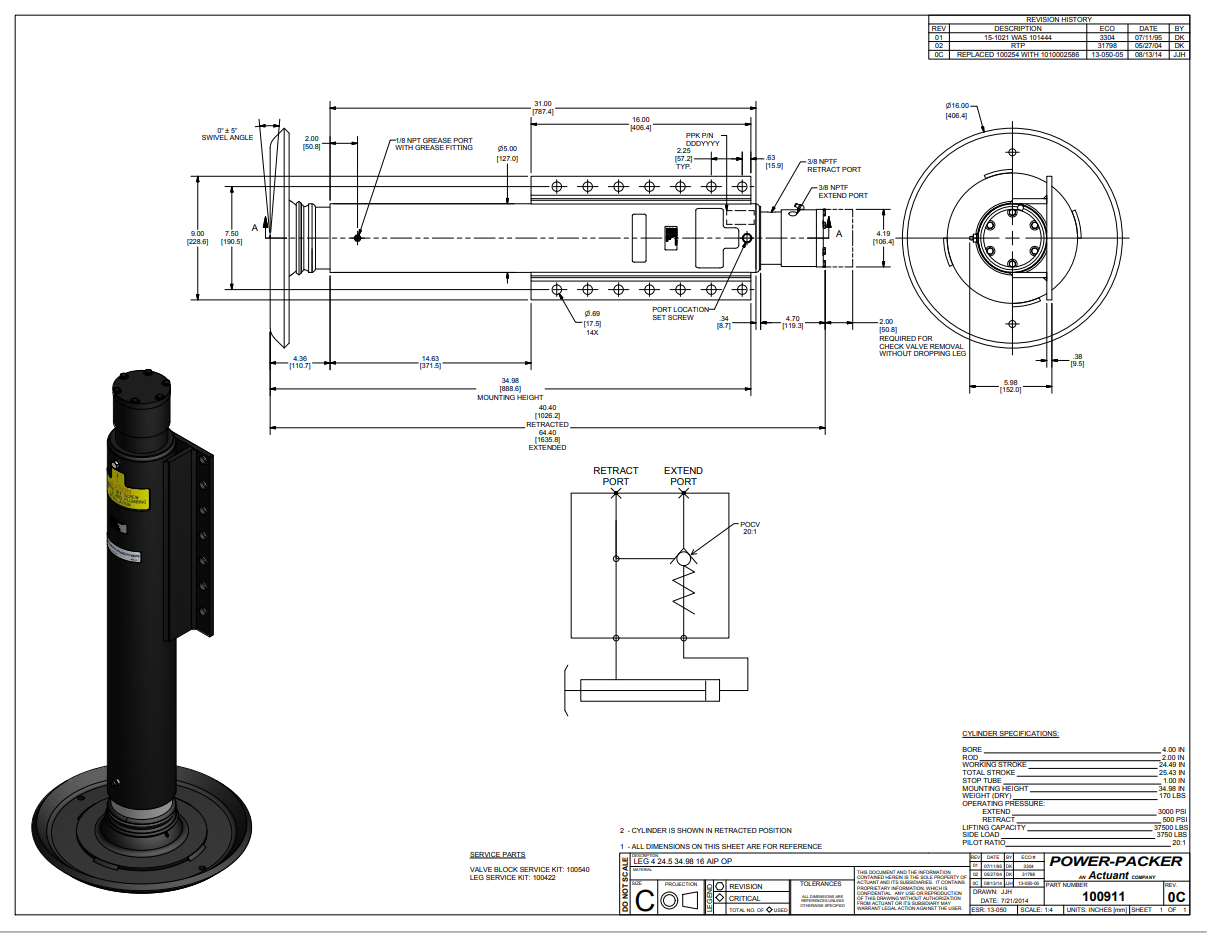

100911 Part Drawing SPECS
| Bore (in|mm) | 4.0 | 102 |
| Stroke (in|mm) | 24.5 | 622 |
| Mounting Height | 35.0 | 888 |
| Shoe (in|mm) | 16.0 | 406 |
| Shoe Type | Swivel |
| Swivel | 0 |
