Description
DESCRIPTION
LEG 3.5 19.5 27.18 10Load Rating: 25,000 lbs | 111.2 kN - High Ratio Single P.O. Check for Air Operation (Max. Retract psi Limit: 500 psi)
Power-Packer offers a complete line of standard hydraulic stabilization legs ranging in bore size from 3� to 6� to meet any on- or off-highway demand.
Product Code: 100443
Power Packer Standard stabilization Legs Specs
Power Packer Full Catalog

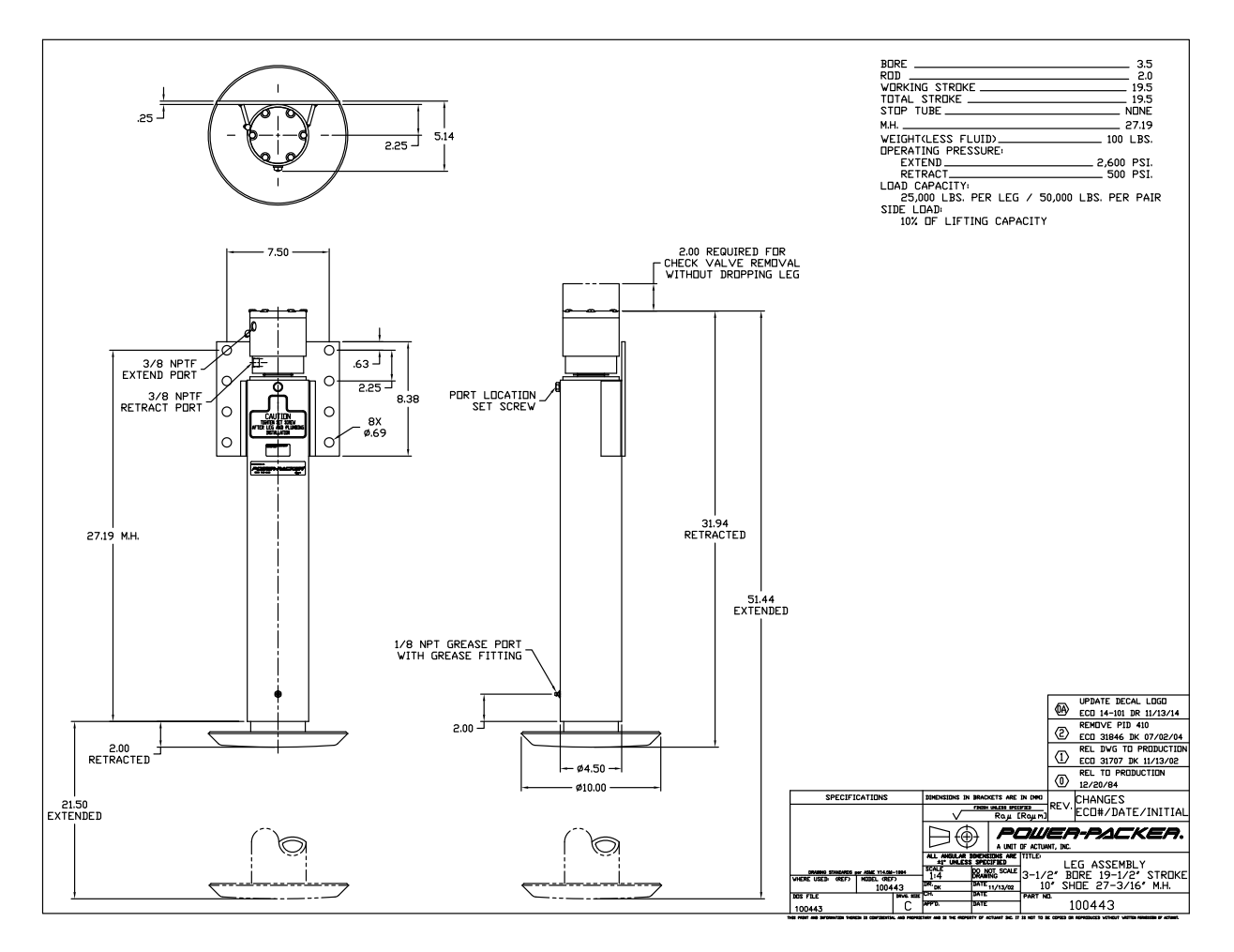

100443 Part Drawing SPECS
| Bore (in|mm) | 3.5 | 89 |
| Stroke (in|mm) | 19.5 | 495 |
| Mounting Height | 29.9 | 759 |
| Shoe (in|mm) | 10.0 | 254 |
| Shoe Type | Fixed |
| Fixed | 0 |
